Technical Information

Sometimes to get the job done right, you are going to need all of the information. Whether you are working with a contractor to install your railing or you just want to ensure you know every specification, we have curated these technical drawings to assist you in your installation.

Railing Specifications

• 6'x36" Continuous Baluster Railing with 2-inch posts and base mount
• 6'x36" Post-to-Post Baluster Railing with 3-inch posts and base mount
• 8'x36" Post-to-Post Baluster Railing with 3-inch posts and base mount
• 6'x42" Post-to-Post Baluster Railing with 3-inch posts and base mount
• 8'x42" Post-to-Post Baluster Railing with 3-inch posts and base mount
• 2" Post Juliette with 2" Post Supports
• 3" Post Juliette with 2" Post Supports

Bases, Skirts and Mounts

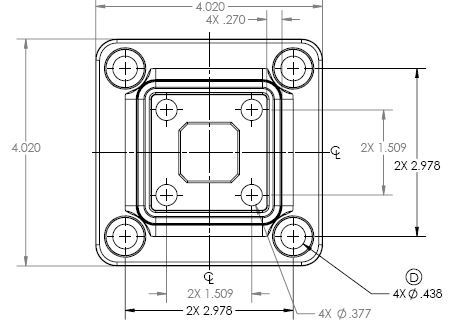

• 2-inch Base
• 3-inch Base
• 2-inch Skirt
• 3-inch Skirt

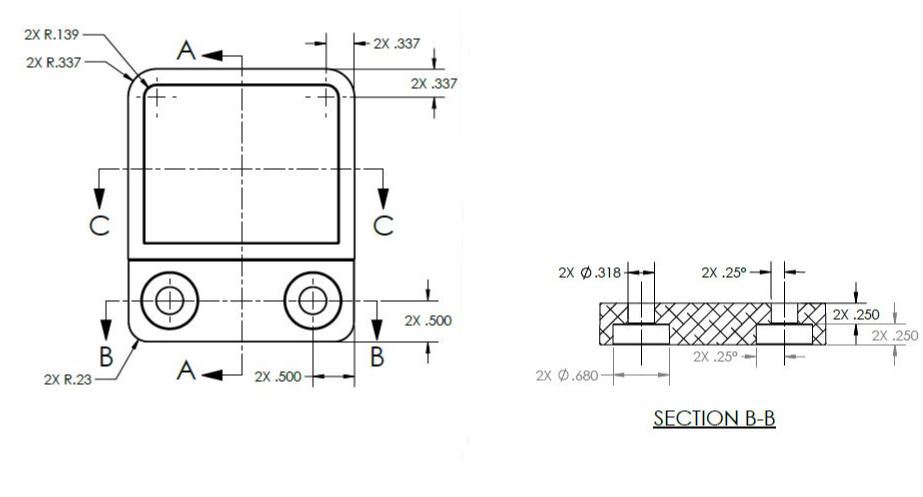

• Alta Wall Mount

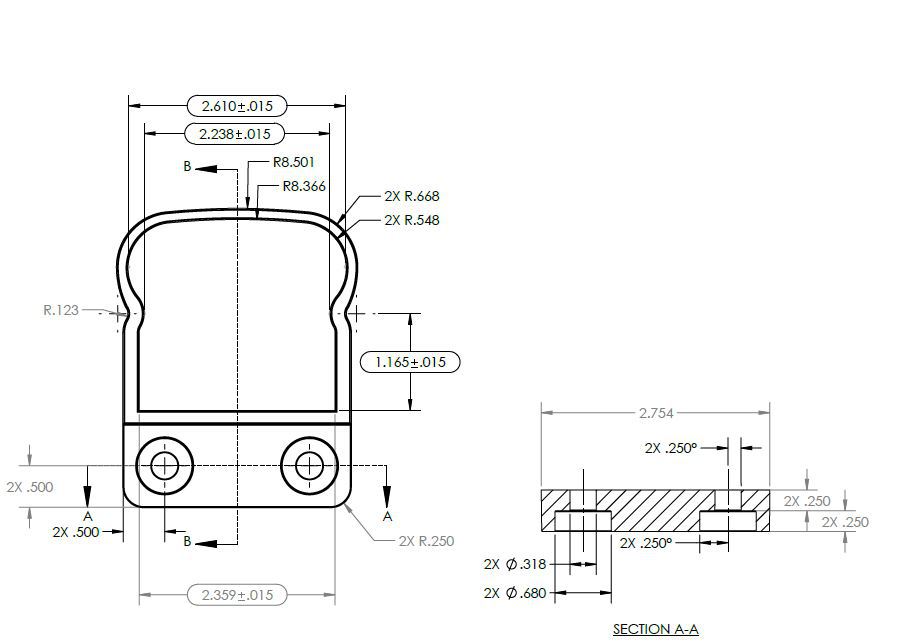

• Victorian Wall Mount

Post Caps

• 3-inch Solar Post Cap Light
• 3-inch Wired Post Cap Light
